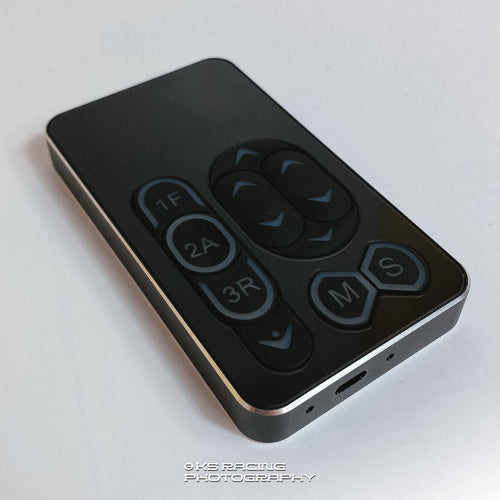

Four Corner Independent Control:

• Press Button 1F to control the front wheels. Use the Multifunctional Key to control the front left side up and down and the front right side up and down.
• Press Button 3R to control the rear wheels. Use the Multifunctional Key to control the rear left side up and down and the rear right side up and down.
• Press Button 2A to control the either the left side front and rear together or the right side front and rear together. Using the Multifunctional Key to adjust up and down.
• Staying on Button 2A, if you press the Increase or Decrease Button, it is to adjusts the front or rear of vehicle up and down together.

Setup: There is 3 Pre-set settings available.

1. Press Button S, and then 1F. You should see Group 1 and some numbers on the screen. You’ll be able to set the Pre-set 1 height for front left and right. Then Press Button 3R to set the Pre-set 1 height for the rear left and right.
2. To move onto Pre-set 2 settings. Press the Increase Button, you should now see Group 2. Same as before, Press Button 1F to setup front left and right and Button 3R to setup rear left and right.
3. To move onto Pre-set 3 settings. Press the Increase Button, you should now see Group 3. Same as before, Press Button 1F to setup front left and right and Button 3R to setup rear left and right.
4. Once you finish setting up the 3 Pre-set settings, click the S Button to return back to the home screen.

Pre-set/Memory Mode Control:

• Press Button M and 1F and the system will automatically go to the setting you had set up for Pre-set 1. Once it has completed, the light on the 1F button will automatically disappear.
• Press Button M and 2A and the system will automatically go to the setting you had set for Pre-set 2. Once it has completed, the light on the 2A button will automatically disappear.
• Press Button M and 3R and the system will automatically go to the setting you had set up for Pre-set 3. Once it has completed, the light on the 3R button will automatically disappear.
• Click M and the Drop Button, it will release all the air from all four corners. Dropping the vehicle to the lowest position possible for the vehicle.

⚒
