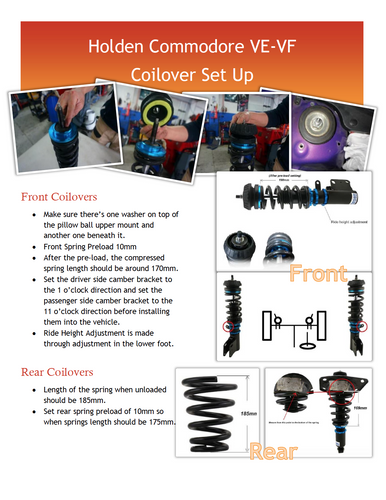

Holden Commodore VE-VF Coilover Set Up Guide

HOLDEN COMMODORE VE-VF COILOVER SET UP - RECOMMENDED GUIDE

Front Set-Up

  • Make sure there's one washer on top of the pillow ball upper mount and another one underneath it.
  • FRONT SPRING PRELOAD 10mm.
  • Before setting
  • After setting the spring pre-load, the compressed spring length should be around 170mm.
  • Set the driver side camber bracket to the 1 o'clock direction and set the passenger side camber bracket to 11 o'clock direction before installing them into the vehicle.
  • RIDE HEIGHT ADJUSTMENT IS MADE THROUGH ADJUSTMENT IN THE LOWER FOOT
  • Front Dampening & Rebound Settings we suggest all the way hard (clockwise) and backwards 8 clicks. (Clockwise = Hard, Anti-Clockwise = Soft.) Adjust around to suit your personal driving style.

Rear Set-Up

  • Length of the spring when unloaded is around185mm.
  • Set rear spring preload of 10mm so when the spring is compressed the length should be 175mm.
  • Rear Dampening & Rebound Settings we suggest all the way hard (clockwise) and backwards 4 clicks. (Clockwise = Hard, Anti-Clockwise = Soft.) Adjust around to suit your personal driving style.

YOUTUBE VIDEO REFERENCE:

https://www.youtube.com/watch?v=HflR2K2Vgmc&t=1s&ab_channel=KSRacingAustralia
